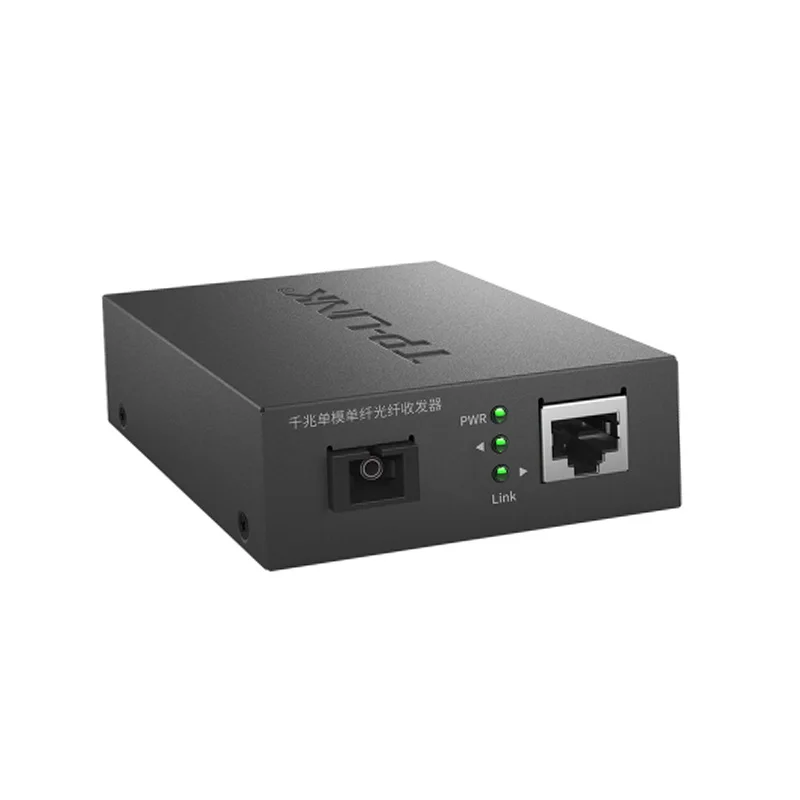

TP-LINK Gigabit transceiver TL-FC311A/B-20km photoelectric converter optical communication transceiver single mode single fiber

$77.96 USD

~~$116.94 USD~~ $77.96 USD

Sale Sold out

Color WHITE

Quantity

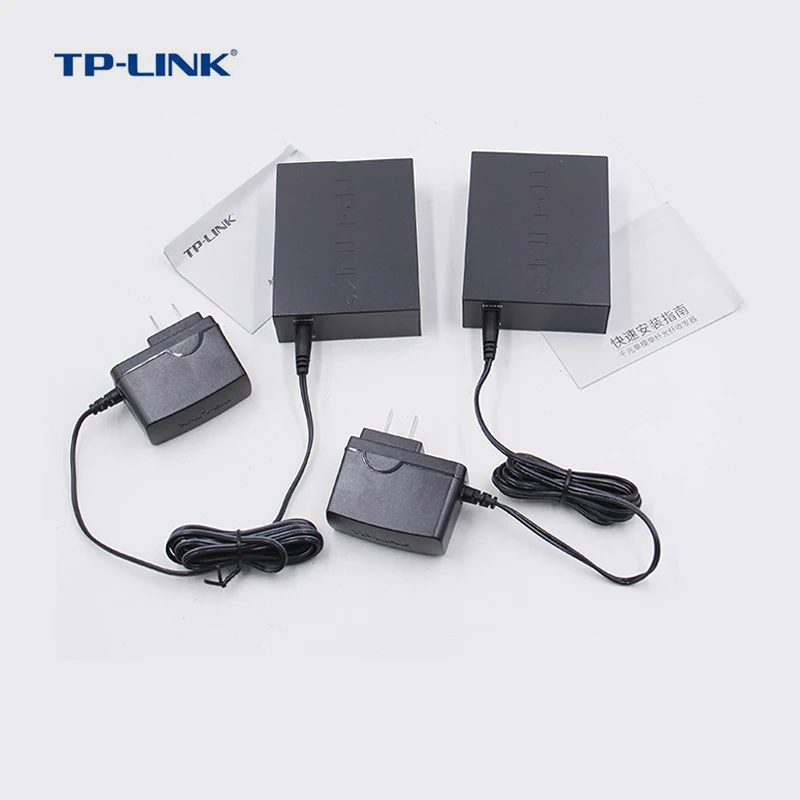

1pair TP-LINK Gigabit transceiver TL-FC311A / B photoelectric converter optical communication transceiver single mode single fiber

Features:

Wavelength division multiplexing, single-fiber data transmission and reception, theoretically saves half the cost of double fiber wiring

TL-FC311A-20 and TL-FC311B-20 adopt Wavelength Division Multiplexing (WDM) technology to realize multiple channels on one wavelength optical fiber without mutual interference. Only one fiber is required for data transmission and reception. Compared to the traditional double fiber fiber transceiver, it can theoretically save half the cost of fiber spinning. The TL-FC311A-20 transmits a wavelength of 1550 nm and a wavelength reception of 1310 nm. The TL-FC311B-20 transmits a 1310 nm wavelength and a 1550 nm wavelength reception. TL-FC311A-20 and TL-FC311B-20 are used together.

Plug and play, no need to set

Plug and play port, no need to configure. Simple operation, fast response.

The TL-FC311A-20 and TL-FC311B-20 are used together to fully perform product performance.

Specifications:

Hardware Specifications:

Standards Support: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Interface:

1 pcs 1.25 Gbps SC fiber interface

1 pcs 100 Mbps / 1000 Mbps adaptive RJ45 port

Transmit Wavelength:

TL-FC311A-3: TX: 1550nm: RX: 1310nm

TL-FC311B-3: TX: 1310nm: RX: 1550nm
