Signal Technologies Online Store

Hotel Home Wifi Cover Seamless Wi fi Manage System 4pc 300Mbps Indoor Access Point AP + 1 RF105 4Port Poe AC Router Load Balance

Hotel Home Wifi Cover Seamless Wi fi Manage System 4pc 300Mbps Indoor Access Point AP + 1 RF105 4Port Poe AC Router Load Balance

$423.48 USD
$635.22 USD $423.48 USD
Sale Sold out
Default

Smart Wifi Home /Apartement /Villa /Coverage Solution 4pcs Indoor Ceiling  Access Point AP +1 AC Management Router with Poe Power Supply Core Gateway

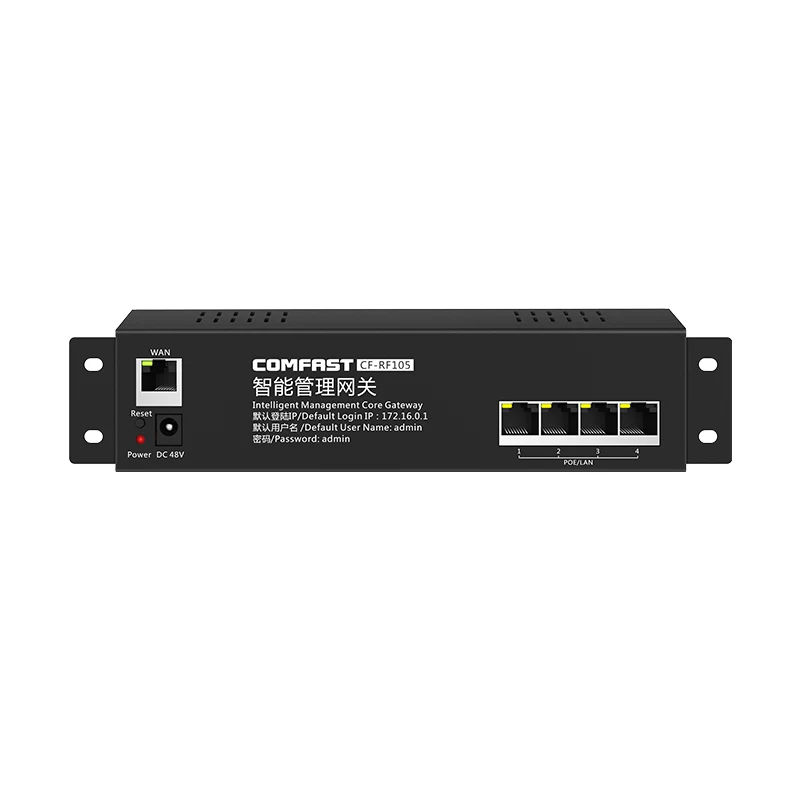

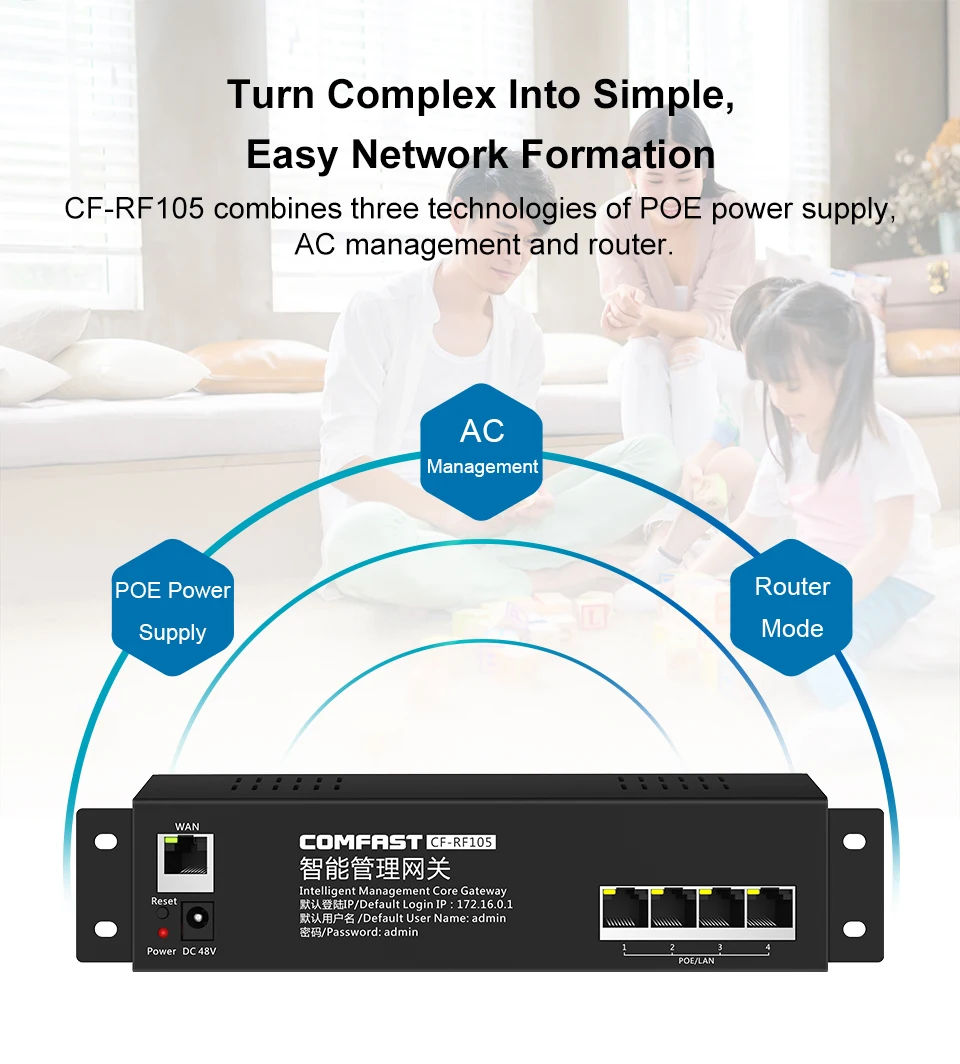

CF-RF105 Features:


1.4 Port Poe Power Supply ,Easy Network Formation
CF-RG105 with 4* LAN / POE Ports, Use 1 network cable to connected AP, then  can realize both power and date transmission
2.Configure the Watchdog Chip, Automatic Repair
CF-RF105 has a built-in watchdong chip, it can reduce post-equipment maintenance and allow the device to quickly resume normal operation from sudden failures.
3. Intelligent Network Flow Control
Intelligent detection of broadband speed,automatic allocation of bandwidth, automatic prioritization of network ensure netwok smooth

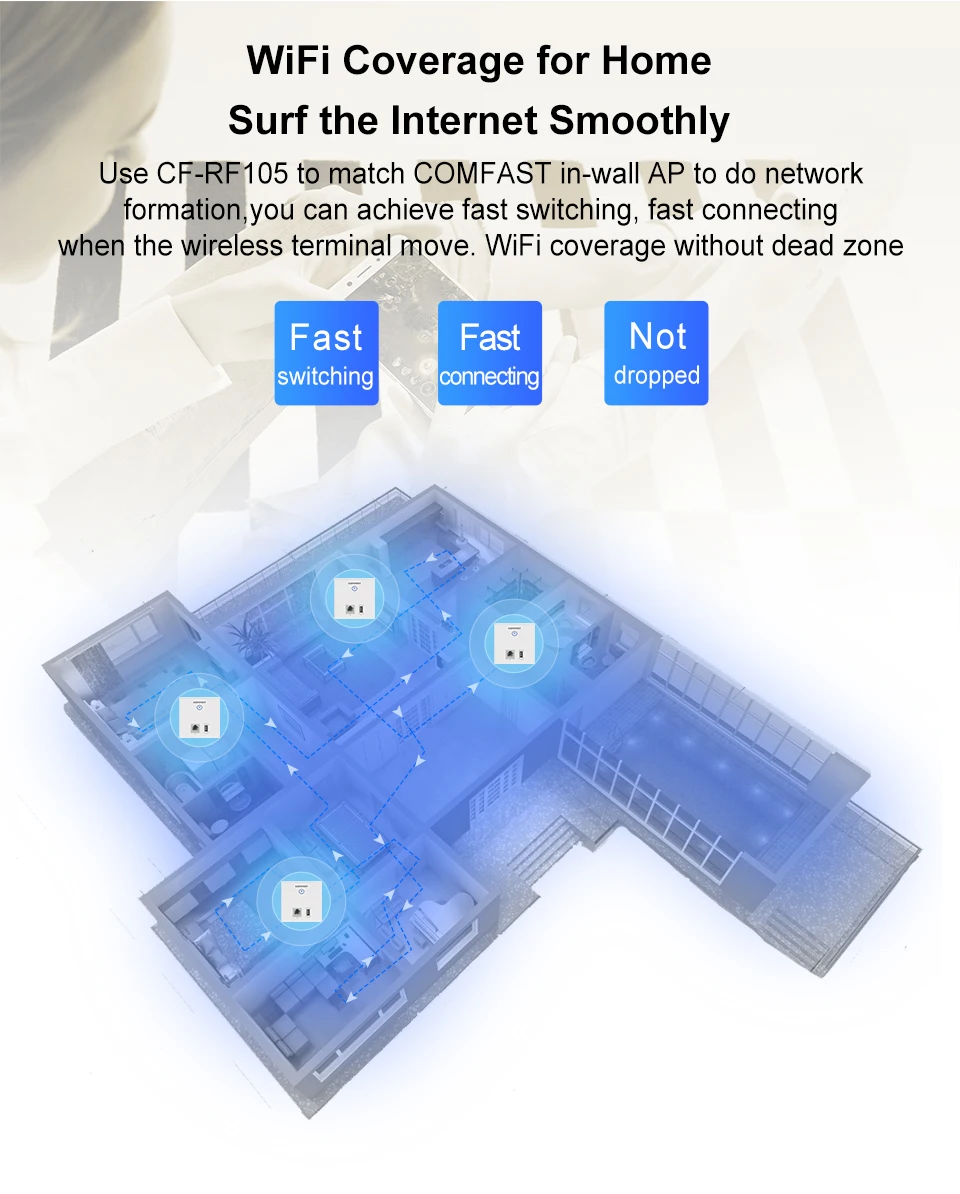

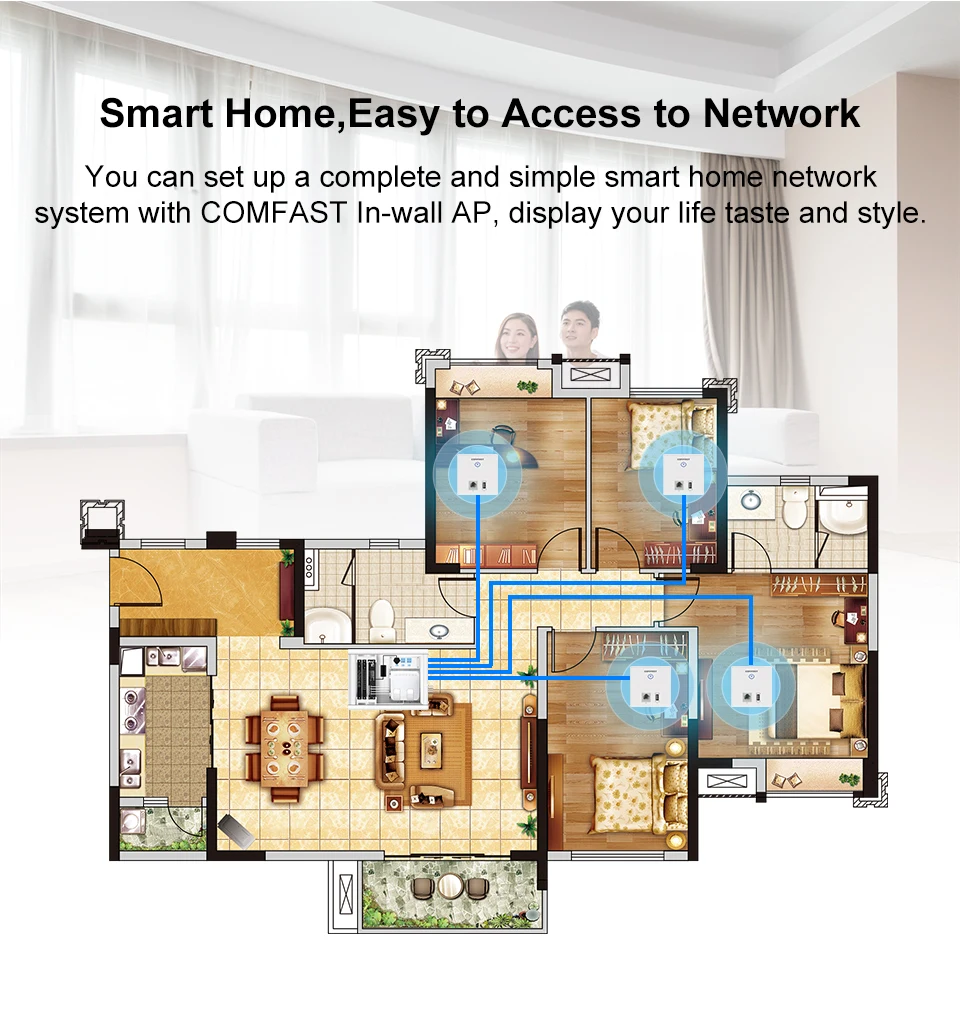

4.Wifi Coverage for Home
Use CF-RF105 to match Comfast in wall ap to do network formation, you can achieve fast switching ,fash connecting when the wireless terminal move. Wifi coverage without dead zone

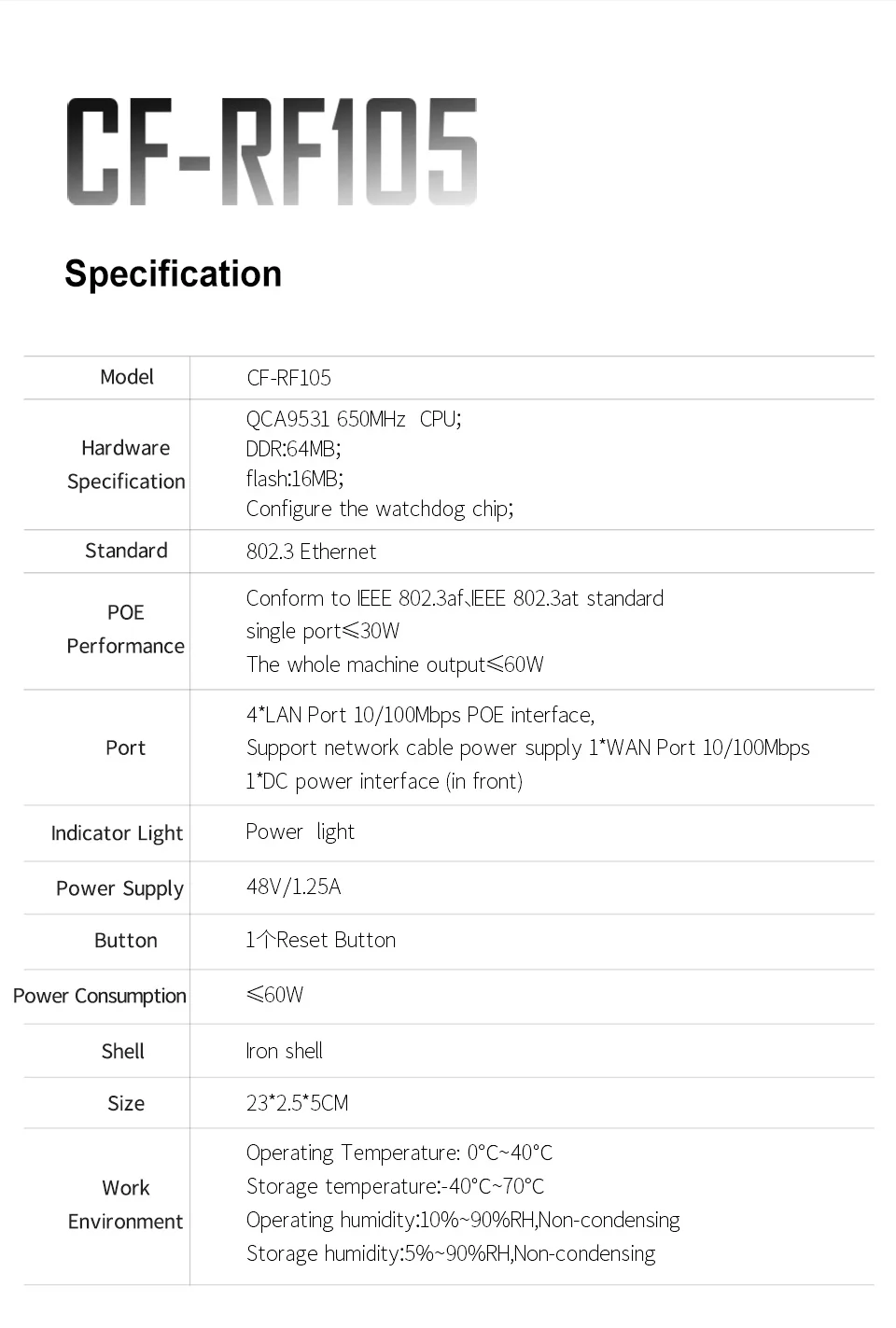

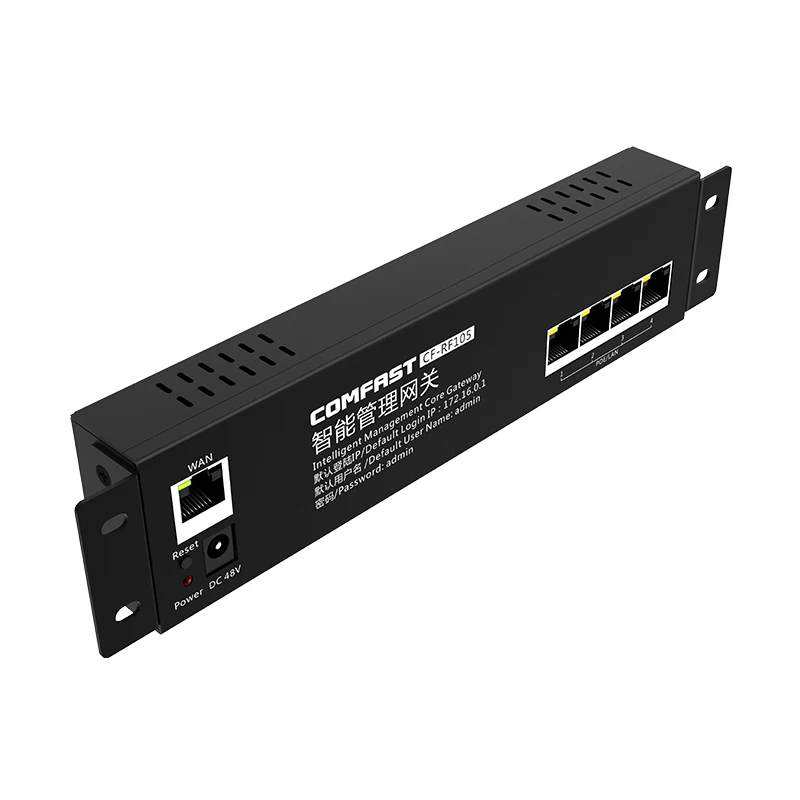

CF-RF105 Specification:
1.QCA9531 Chipset, Configure the Watchdog Chip
2.802.3 Ethernet
3.Confor to 802.11af,802.11at standard
4. 4* LAN Port 10/100Mbps POE interface
5. Support Network cable power supply 1*WAN Port 10/100Mbps 1 *DC power interface (in front)
6. 48V/ 1.25A Power Supply


CF-E320N Specification:

1.Powerful 300M  Qualcomm QCA9533CPU, 64MB DDR 2.4G  Wireless AP
2.Supports Wireless AP Controller Management
3. Antenna :Built in 2*3dBi loop antenna
4.Safe 48V Poe Adapter



Package included :

CF-E320N Ceiling AP *4

Screw *4

CF-RF105 AC Router with 4 ports poe function*1

Warrty card *4





CF-RF105

CF-E320NV2
Features:

The Comfast CF-E320NV2 is based on the powerful Qualcomm QCA9531 main chip design, supplemented by a 64MB running memory,8MB Flash, and it is only for excellent performance.
In addition, CF-E320NV2 also supports Multi-user simultaneously Access
It is based on the OpenWRT OS,U-boot can always refresh and never carsh.
It Support intelligent flow control ,Mutlti-Wan Access , Roaming Seamless  Behavior management .Smart AC Control and other black technologies.
The measured data of Comfast Lab shows that E320 can support 30-40 devices connect and can run smoothly. It is especially suitable for the following places: large restaurants, bars, conference rooms, offices, exhibition halls, waiting rooms, cinemas, libraries, and so on

Q&A
Q1.How long the range of the Access Point ?

A:This indoor access point , as for no obstacles environment, it can cover 100-300square.


Q2.How Many pieces included in the package ?Does it included poe adapter?

A:The package included the 4pcs access point and 4pcs 48V poe adapter and 1pcs RF105 AC Gateway

and network cable and accessories Screws ,Install guide,  Warranty Card;



Q3. What is the firmware language ?What language can i change to ?

A: The access Point support English and Chinese ,generally you can choose English when setting ;



Q4.How many users can connected at the same time ?

A:This Access Point support 20-50 users at the same time as no obstacles environment


Q5.Does the access point support openwrt ddwrt ?

A:The access Point support openwrt and ddwrt firmware ,but this need you udpate by yourself.If you have experience, you can udpate ,We not suggest you udpate,if you have no experience .



Q6.How many ssid can be set in this access point ?

A:The access Point can set 8 ssid



Q7.Does the access point support 48V poe switch?

A: Yes,the access point can connected with 48V poe switch as power supply.




Q8.Does it work as a WiFi repeater?

A:The access point support AP/Router/Repeater/Bridge mode

can set as repeater mode , just repeater mode will have signal loss , generally we suggest set access point connected with router by network cable as AP mode



Q9:Does it support 5G?

A: This is a 300Mbps access Point ,only support 2.4G, If you need support 5G ,please choose CF-E375AC, CF-E355AC.


CF-E375AC    https://www.aliexpress.com/item/32840385797.html

CF-E355AC   https://www.aliexpress.com/item/32899331592.html


Q10:Does the kit support seamless wifi ?

A:  Yes,As for roaming ,can set the same ssid in ac router ,This much quick and easy compared with you set one by one , AC router can set more quick,Also much convenicence to check the access point working condition!
